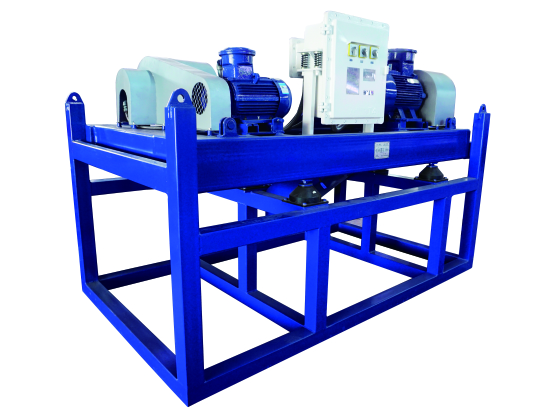

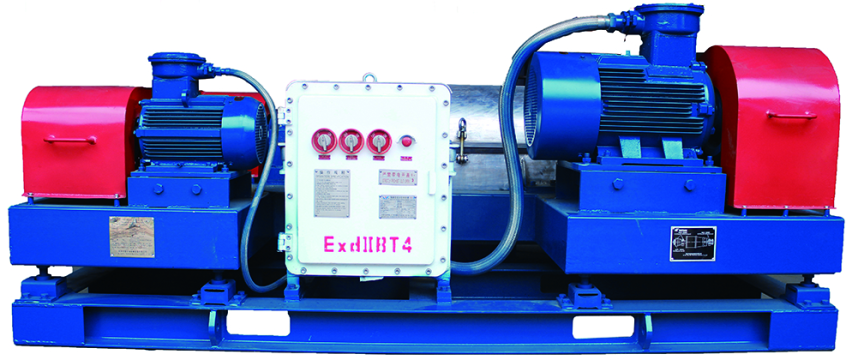

^離心機Centrifuge
作者：西安華揚油氣設備有限公司 發布日期：2019-08-27
鉆井液離心機是鉆井平臺中重要的固控設備。它分離大于2μm的固相，有效解決旋流裝置不能分離超細有害固相的問題。離心機能迅速恢復鉆井液比重等性能，為高效科學地鉆井提供可靠的保證。主要分為鉆井液中速離心機和鉆井液高速離心機。
功能詳情 技術參數
西安華揚油氣設備離心機產品特點Features and Benefits：
1.轉鼓直段和錐段采用2205雙相不銹鋼材料，采用離心澆鑄工藝。(Adopt 2205 duplex stainless steel for the Cylindrical and Conical sectionand centrifugal casting process.）
2.轉股總成其余部件均采用SS316L不銹鋼材料。（The rest of bowl assy are all SS316L.)
3.螺旋推料器采用YG6耐磨合金片保護，使用壽命長，便于維修更換。(Spiral conveyor is protected by wear-resistant alloy platelong service life and east to maintain and replace.)
4.螺旋推料器的分流口以及轉鼓的排渣口采用易于更換的耐磨合金套保護，延遲使用壽命，和保養周期。(Branch mouth of conveyor and solids outlet of bowl are both protected by wear-resistant alloy sheath which is easy to replacelengthen the usage lifeand maintenance cycle. )
5轉鼓總成在運輸中通過可拆卸支撐架保護，防止運輸途中對軸承造成損傷。(Bowl assy is protected by dismantled support during transportationprevent the damage to bearings in the transportation.)
6.選用原裝進口SKF軸承和NSK軸承提高設備穩定性，和軸承使用壽命。(Adopt original packing imported SKF and NSK bearings to improve the machines stability and long service life.)
7.選用變頻控制，方便客戶隨時調節轉速，滿足不同工況條件。(Adopt variable frequency controland make user be convenient to adjust rotation speed anytimemeet different working situations.)
8.電氣元件采用施耐德或西門子，選用電流過載保護和機械限位開關雙重保護。(Adopt the electrical components of Schneider or Siemensselect the current overload protection and mechanical limit switch double protection.)
1.轉鼓直段和錐段采用2205雙相不銹鋼材料，采用離心澆鑄工藝。(Adopt 2205 duplex stainless steel for the Cylindrical and Conical sectionand centrifugal casting process.）
2.轉股總成其余部件均采用SS316L不銹鋼材料。（The rest of bowl assy are all SS316L.)
3.螺旋推料器采用YG6耐磨合金片保護，使用壽命長，便于維修更換。(Spiral conveyor is protected by wear-resistant alloy platelong service life and east to maintain and replace.)
4.螺旋推料器的分流口以及轉鼓的排渣口采用易于更換的耐磨合金套保護，延遲使用壽命，和保養周期。(Branch mouth of conveyor and solids outlet of bowl are both protected by wear-resistant alloy sheath which is easy to replacelengthen the usage lifeand maintenance cycle. )
5轉鼓總成在運輸中通過可拆卸支撐架保護，防止運輸途中對軸承造成損傷。(Bowl assy is protected by dismantled support during transportationprevent the damage to bearings in the transportation.)
6.選用原裝進口SKF軸承和NSK軸承提高設備穩定性，和軸承使用壽命。(Adopt original packing imported SKF and NSK bearings to improve the machines stability and long service life.)
7.選用變頻控制，方便客戶隨時調節轉速，滿足不同工況條件。(Adopt variable frequency controland make user be convenient to adjust rotation speed anytimemeet different working situations.)
8.電氣元件采用施耐德或西門子，選用電流過載保護和機械限位開關雙重保護。(Adopt the electrical components of Schneider or Siemensselect the current overload protection and mechanical limit switch double protection.)
| 型號Model | HYLW600B-1 | HYLW450N-1 | HYLW450N-2 | HYLW355N-1 | HYLW355NB-1 |
|
轉鼓直徑 Bowl Diameter |
600mm | 450mm | 450mm | 355mm | 355mm |
|
轉鼓長度 Bowl Length |
1500mm | 1000mm | 1250mm | 1250mm | 1250mm |
|
轉鼓轉速 Bowl Speed |
2200r/min | 2200r/min | 3200r/min | 3200r/min | 0～3200r/min |
|
處理量 Treatment Capacity |
90?/h | 50?/h | 40?/h | 40?/h | |
| 分離因素G-Force | 815 | 815 | 2035 | 2035 | 0～2035 |
| Separation point | 5～7μm | 5～7μm | 2～5μm | 2～7μm | |
|
差速器轉速 Separation point |
40r/min | 40r/min | 30r/min | 30r/min | 0-30r/min |
|
差速器速比 Gear Box Ration |
35:1 | 57:1 | |||
|
主電機功率 Main Drive Motor |
55kw | 30kw | 37kw | 30kw | 37kw |
|
輔電機功率 Back Drive Motor |
15kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
|
防爆標準 EX Standard |
ExdIIBt4 / IECEX / A-TEX | ||||
| 重量 Wright | 4800kg | 2700kg | 3200kg | 2900kg | 3200kg |
|
外形尺寸 Dimension |
2900×1900×1750mm | 2600×1860×1750mm | 2600×1860×1750mm | 2600×1620×1750mm | 2600×1620×1750mm |
